ORIGINAL ARTICLE

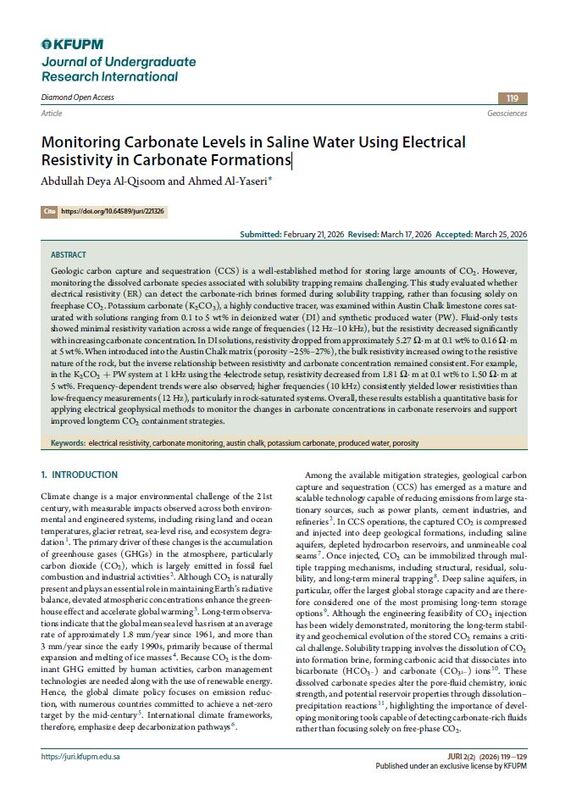

Monitoring Carbonate Levels in Saline Water Using Electrical
Resistivity in Carbonate Formations
More details
Hide details
1
Department of Geosciences, KFUPM, Saudi Arabia
2
Center for Integrated Petroleum Research, KFUPM, Saudi Arabia
Submission date: 2026-02-21
Final revision date: 2026-03-17
Acceptance date: 2026-05-03
Publication date: 2026-09-07
Journal of Undergraduate Research International 2026;2(2):119-129
KEYWORDS
TOPICS
ABSTRACT
Geologic carbon capture and sequestration (CCS) is a well-established method for storing large amounts of CO2. However, monitoring the dissolved carbonate species associated with solubility trapping remains challenging. This study evaluated whether electrical resistivity (ER) can detect the carbonate-rich brines formed during solubility trapping, rather than focusing solely on freephase CO2. Potassium carbonate (K2CO3), a highly conductive tracer, was examined within Austin Chalk limestone, cores saturated with solutions ranging from 0.1 to 5 wt% in deionized water (DI) and synthetic produced water (PW). Fluid-only tests showed minimal resistivity variation across a wide range of frequencies (12 Hz–10 kHz), but the resistivity decreased significantly with increasing carbonate concentration. In DI solutions, resistivity dropped from approximately 5.27Ω·m at 0.1 wt% to 0.16Ω·m at 5 wt%. When introduced into the Austin Chalk matrix (porosity ~25%–27%), the bulk resistivity increased owing to the resistive nature of the rock, but the inverse relationship between resistivity and carbonate concentration remained consistent. For example, in the K2CO2 + PW system at 1 kHz using the 4electrode setup, resistivity decreased from 1.81 Ω· m at 0.1 wt% to 1.50 Ω· m at 5 wt%. Frequency-dependent trends were also observed; higher frequencies (10 kHz) consistently yielded lower resistivities thanlow-frequency measurements (12 Hz), particularly in rock-saturated systems. Overall, these results establish a quantitative basis for applying electrical geophysical methods to monitor the changes in carbonate concentrations in carbonate reservoirs and support improved long-term CO2 containment strategies.
