ORIGINAL ARTICLE

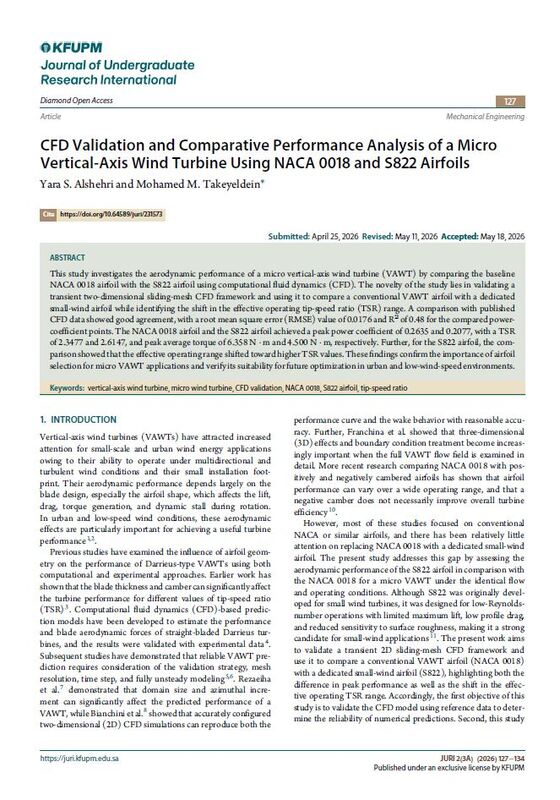

CFD Validation and Comparative Performance Analysis of a Micro
Vertical-Axis Wind Turbine Using NACA 0018 and S822 Airfoils
More details
Hide details
1
Department of Aerospace Engineering, King Fahd University of Petroleum & Minerals, Saudi Arabia
2
Interdisciplinary Research Centre for Aviation and Space Exploration, King Fahd University of Petroleum and Minerals (KFUPM), Saudi Arabia
Submission date: 2026-04-25
Final revision date: 2026-05-18
Acceptance date: 2026-08-23
Publication date: 2026-09-27
Corresponding author
Mohamed Elsayed
Interdisciplinary Research Centre for Aviation and Space Exploration, King Fahd University of Petroleum and Minerals (KFUPM), 31261, Dhahran, Saudi Arabia
Journal of Undergraduate Research International 2026;2(3A):127-134
KEYWORDS
TOPICS
ABSTRACT
This study investigates the aerodynamic performance of a micro vertical-axis wind turbine (VAWT) by comparing the baseline
NACA 0018 airfoil with the S822 airfoil using computational fluid dynamics (CFD). The novelty of the study lies in validating a
transient two-dimensional sliding-mesh CFD framework and using it to compare a conventional VAWT airfoil with a dedicated
small-wind airfoil while identifying the shift in the effective operating tip-speed ratio (TSR) range. A comparison with published
CFD data showed good agreement, with a root mean square error (RMSE) value of 0.0176 and R² of 0.48 for the compared power coefficient
points. The NACA 0018 airfoil and the S822 airfoil achieved a peak power coefficient of 0.2635 and 0.2077, with a TSR
of 2.3477 and 2.6147, and peak average torque of 6.358 N · m and 4.500 N · m, respectively. Further, for the S822 airfoil, the comparison
showed that the effective operating range shifted toward higher TSR values. These findings confirm the importance of airfoil
selection for micro VAWT applications and verify its suitability for future optimization in urban and low-wind-speed environments.
